TAJV108M006RNJ
Manufacturer:
Kyocera AVX
Mfr.Part #:
TAJV108M006RNJ
Datasheet:
Description:

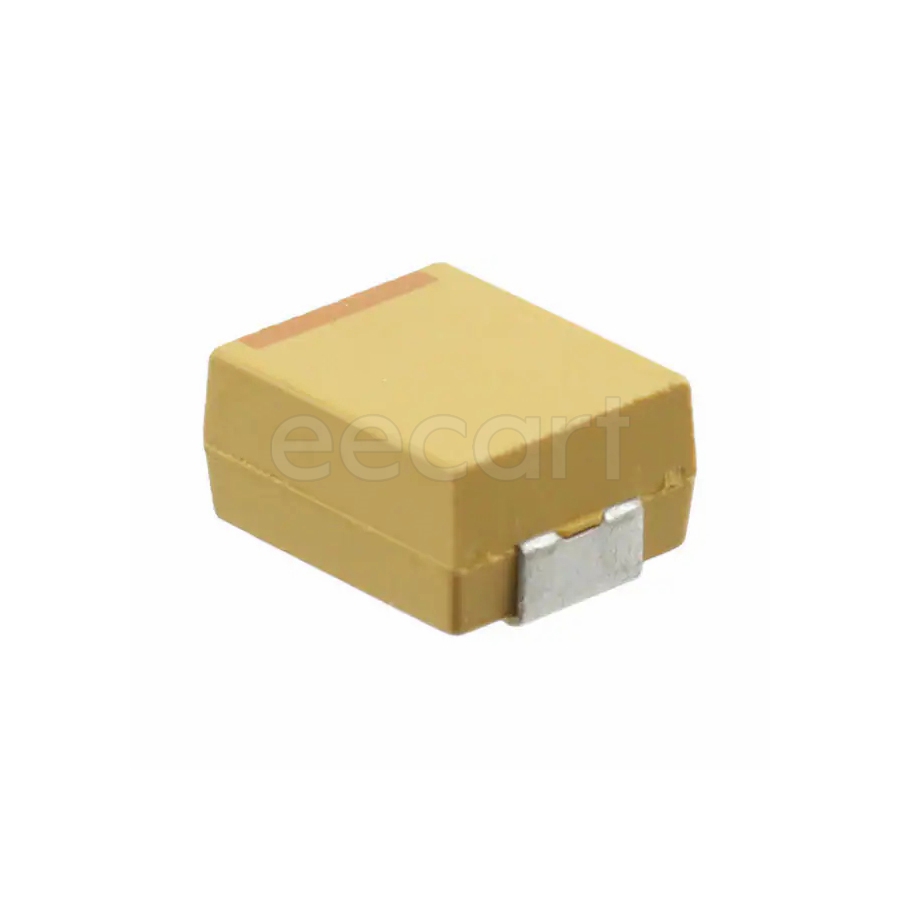

Tantalum Capacitors 2924(7361 Metric) SMD/SMT 1 mF 20 % 6.3 V
| Parameter | Value |
|---|---|
| Capacitance | 1 mF |
| Voltage Rating (DC) | 6.3 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 200 mΩ |
| Life (Hours) | 2000 Hours |
| Ripple Current | 1.118 A |
| Height - Seated (Max) | 3.76 mm |
| Length | 7.3 mm |
| Width | 6.096 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 2924 |
| Case Code (Metric) | 7361 |
| Number of Pins | 2 |
| Leakage Current | 60 µA |
| Dissipation Factor | 16 % |
| Height | 3.75 mm |
| Packaging | Reel |
| Voltage Rating | 6.3 V |
| Depth | 6.1 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| REACH SVHC | No SVHC |
| Dielectric Material | Tantalum |
| Features | General Purpose |
| Type | Molded |
| Lifecycle Status | Production (Last Updated: 2 years ago) |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 years ago) |
Stock: 66
Distributors
pcbx
pcbxUnit Price$2.91617
Ext.Price$2.91617
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.91617 | $2.91617 |
| 10 | $2.09629 | $20.96290 |
| 25 | $1.92702 | $48.17550 |
| 50 | $1.77141 | $88.57050 |
| 100 | $1.66455 | $166.45500 |
| 300 | $1.55522 | $466.56600 |
| 500 | $1.45307 | $726.53500 |
| 1000 | $1.35763 | $1357.63000 |
